Ashrae/EPA/HEPA/ULPA Filters

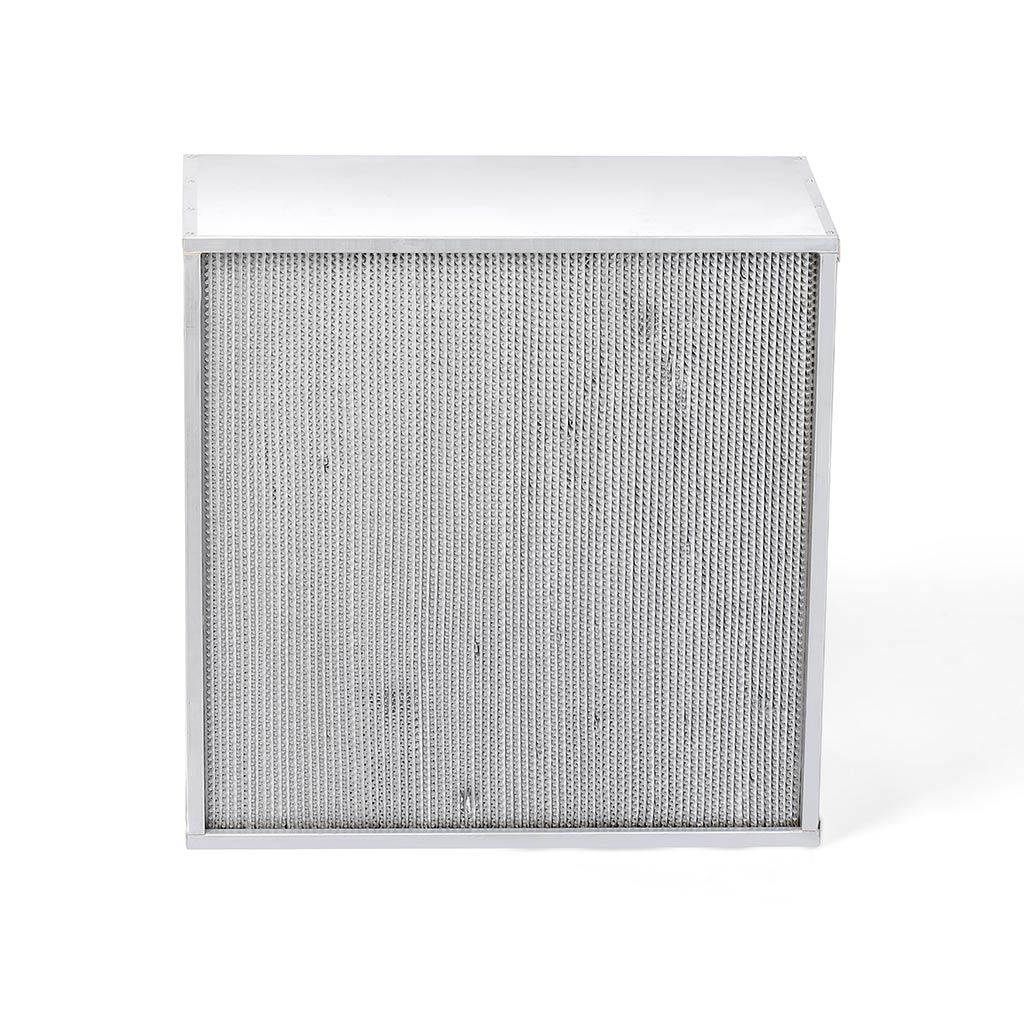

Deep Pleat HEPA

Our HEPA (High Efficiency Particulate Air) filter is constructed from high quality wet laid micro-glass media and uses corrugated aluminium separators. The pleat pitch is designed for minimum air flow resistance and the spacer edge`s are 'safety rolled' to prevent media puncture. The filter is sealed to the frame with a two - part spongy PU resin to ensure zero leakage and zero transit damage.

Enquire Now

Benefits

AFi's Deep Pleat HEPA achieves the upto 30% lower pressure drop than other available HEPA filters in the market.
Robust construction.
Standard and High Capacity versions available.
Controlled laminar flow.
HEPA filters are offered as per IES-RP-CC001.3

Features

Test Standard

EN1822

Available Grades

H13 & H14

Available Efficiencies

99.97 & 99.995%

Application

Pharmaceutical Plants, Semi - Conductors , Medical Equipments, Biotechnology, Operation Theaters, Food & Beverage, Research & Laboratories
